35pc RZR Tool Kit (Tools Only)

35PC RZR TOOL KIT

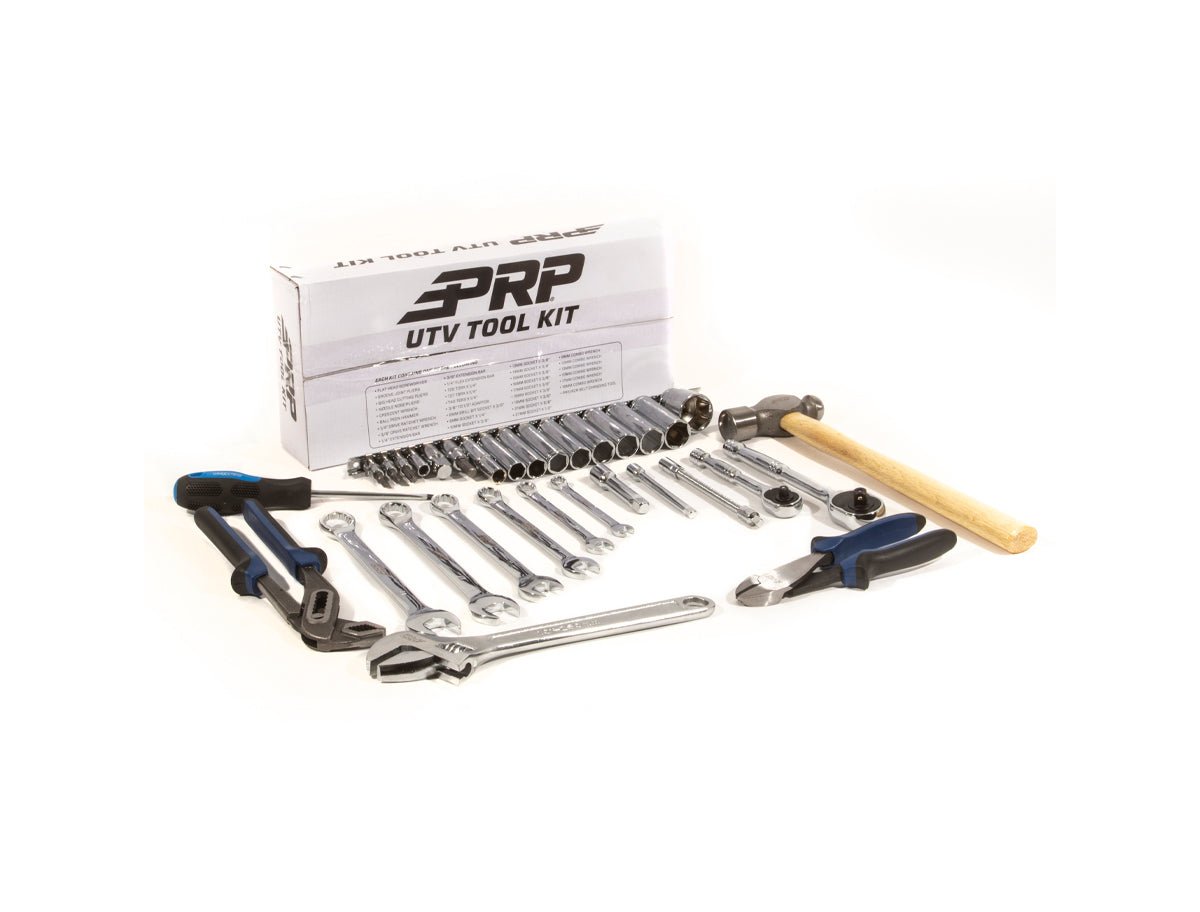

PRPs RZR Roll-Up Tool Kit provides everything you need to fix your RZR out on the trail. This 35 piece kit includes a selection of high-quality ratchets, sockets, wrenches, extension bars, pliers, and a ball peen hammer (for when things get really fun). Weve hand picked the tools that are needed most when working on a Polaris RZR “ So you have only the essentials that you really need. Below we have listed all the tools included, along with a handy guide to the most common uses for each tool. Each tool also includes a Limited Lifetime Warranty.

The Roll-Up Bag makes it easy to keep everything neat and organized. It features dedicated sleeves for all the tools included in the kit, as well as a zippered pocket to hold the sockets and any other tools you want to bring with you. The bag is made from extremely durable twill material. It features heavy duty buckles, and an easy to carry grab handle. It can be mounted, or stored securely inside the vehicle. The roll-up style bag makes it quick and easy to grab out of the vehicle when you need it, and the tools inside dont make noise when bouncing around the trails.

This kit also comes with PRPs innovative RZR Belt Changing Tool. This tool makes it quick and easy to change the belt on your Polaris RZR 570, 800, XP 900 & XP 1000. Rather than use a wrench to hold open the secondary clutch, our simple tool ˜locks the clutch open the entire time. Just insert the tool, tighten down the bolt, and leave it in place while you change the belt. It allows you to change a belt in seconds, rather than minutes.

For Turbo, Turbo S, RS1, and PRO XPs weve included a hardened 1/4³ bolt that accomplishes the same task on the newer clutches. Rather than using the L shaped clutch wrench thats included in the stock tool kit (where you have to spin it by hand a thousand times), you can simply insert this bolt, and use a ratchet (or impact) to tighten it down in seconds. The bolt holds the secondary clutch open, so you can quickly and easily change the belt.

Dont get caught out on the trail unprepared. PRPs Roll-Up Tool Kit has everything you need to get your RZR going!

TESTIMONIAL
œThis tool burrito is the product I end up using the most, and has pretty much everything you really need to work on a RZR. I know that, because Ive broken almost everything on a RZR. “ Aaron

VEHICLE FITMENT
Polaris RZR 570 / 800 / 900 / 1000 / Turbo / Turbo S / RS1 / PRO XPKIT INCLUDES 1- Flat Head screwdriver “ Hose clamps

1- Groove joint pliers

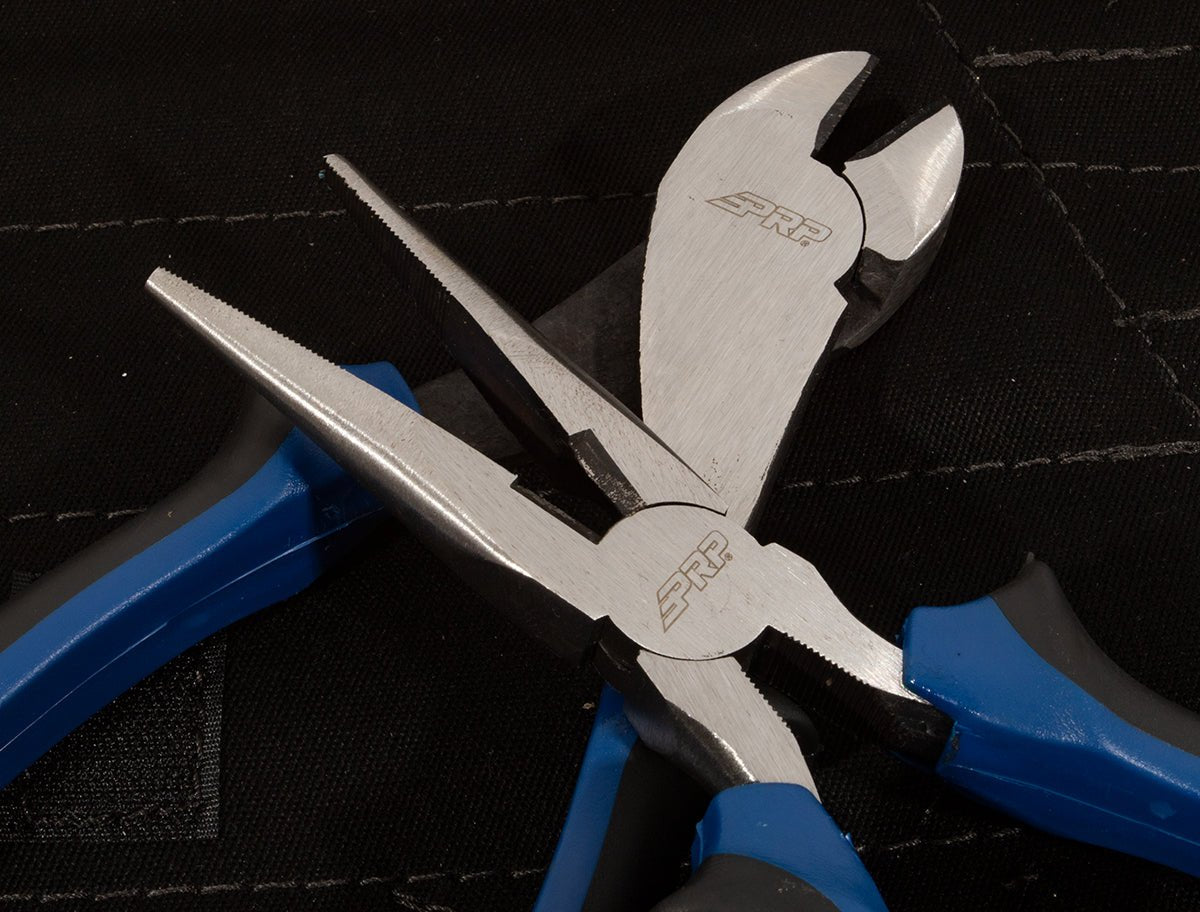

1- Big head cutting pliers

1- Needle nose pliers “ For when you drop things down where its hard to reach

1- Crescent wrench “ Used on almost everything

1- Ball peen hammer “ If something doesnt fit¦ make it fit

1- 1/4³ ratchet

1- 3/8³ ratchet

1 “ 1/4³ extension bar

1 “ 3/8³ extension bar

1 “ 1/4³ flex extension bar

1 “ T25 x 1/4³ “ Door-skins, buss bar, CV boot guard, ECU

1 “ T27 x 1/4³ “ Overflow bottle, EPS cover, seat adjuster

1 “ T40 x 1/4³ “ Bodywork, hood

1 “ 3/8³ to 1/2³ adapter

1 “ 5/8³ Spark Plug Socket

1 “ 8mm Allen Head Socket x 3/8³ “ Diff drain & fill, Trans drain & fill

1 “ 8mm Socket x 1/4³ “ CVT Cover, side case

1 “ 10mm Socket x 3/8³ “ Skid plate, ground wire, starter solenoid, shift sensor, ex heat shield, rad mount, buss bar

1 “ 11mm Socket x 3/8³ “ PRP Belt Changing Tool & Bolt, various aftermarket products

1 “ 13mm Socket x 3/8³ “ Frame support, sway bar mount, front facia, brake line, steering shaft, battery cable, ext water pump, pedal assembly, rock guard

1 “ 15mm Socket x 3/8³ “ Ball joint pinch bolts, steering shaft, EPS, cage, harness bar, rear caliper brakes, rear hub, swaybar, remove secondary clutch

1 “ 16mm Socket x 3/8³ “ Diff mount, Front caliper bracket, seat belts

1 “ 17mm Socket x 3/8³ “ Steering shaft, turbo oil line

1 “ 18mm Socket x 3/8³ “ Shocks, A-arms, trailing arm, frame support, radius rods, tie rod, diff

1 “ 19mm Socket x 3/8³ “ Turbo oil line, lug nuts, seat belts

1 “ 21mm Socket x 3/8³ “ Primary clutch bolt

1 “ 27mm Socket x 1/2³ “ Axle nut

1 “ 8mm Combo Wrench “ CVT Cover, side case

1 “ 10mm Combo Wrench “ Skid plate, ground wire, starter solenoid, shift sensor, ex heat shield, rad mount, buss bar

1 “ 13mm Combo Wrench “ Frame support, sway-bar mount, front fascia, brake line, steering shaft, battery cable, ext water pump, pedal assembly, rock guard

1 “ 15mm Combo Wrench “ Ball joint pinch bolts, steering shaft, EPS, cage, harness bar, rear caliper brakes, rear hub, sway-bar

1 “ 17mm Combo Wrench “ Steering shaft, turbo oil line

1 “ 18mm Combo Wrench “ Shocks, A-arms, trailing arm, frame support, radius rods, tie rod, diff

1 “ PRP Belt Changing Tool “ (RZR 570,800,900,1000) Insert the tool into the secondary clutch, and tighten the bolt down with a ratchet (or impact gun). The tool holds the clutch open, and allows you to change a belt in seconds.
