Kymco 500 - 2 Pc General-Purpose Windshield

FITMENT:  2008-2018 Kymco 500 and 500i Models

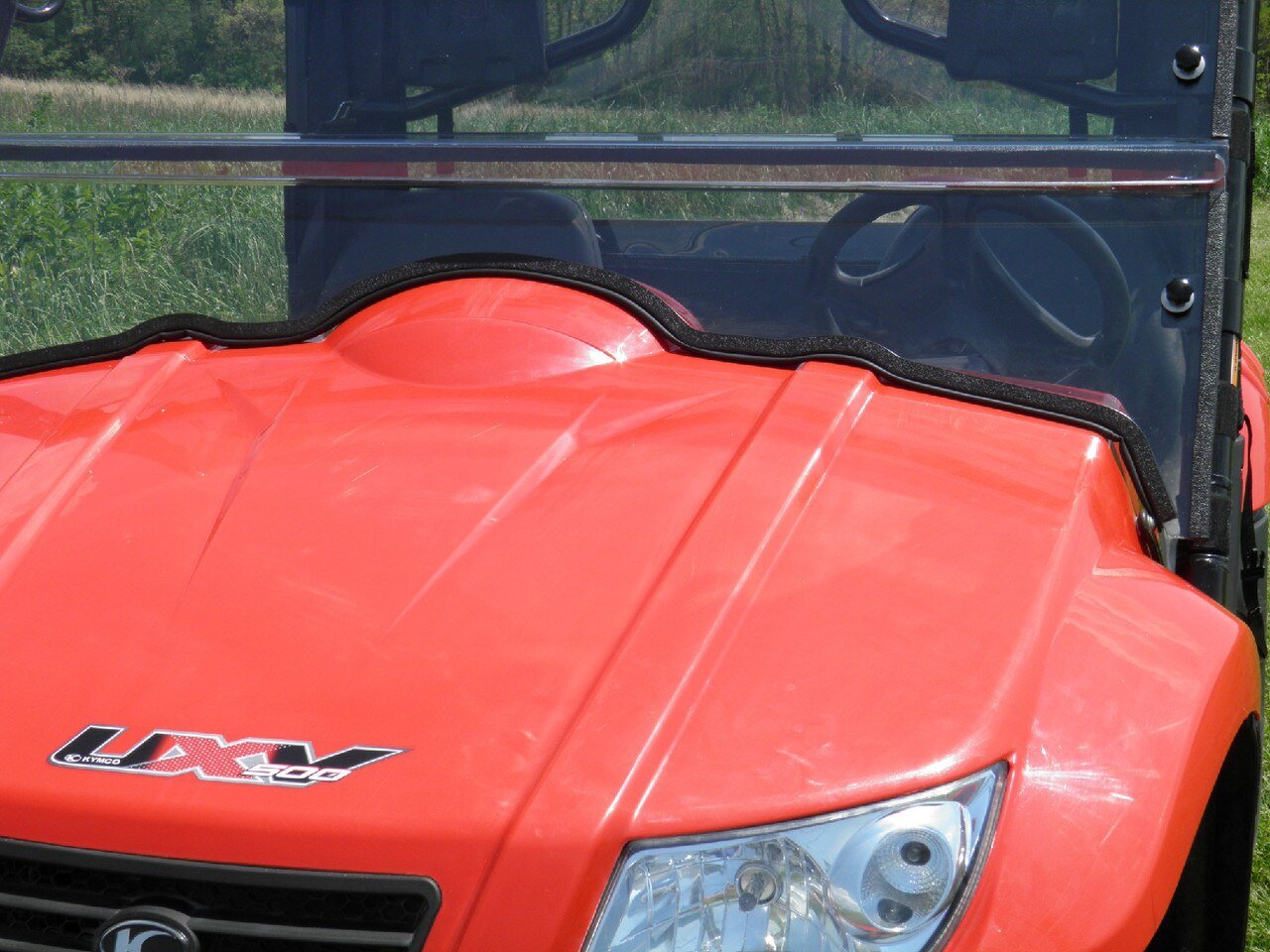

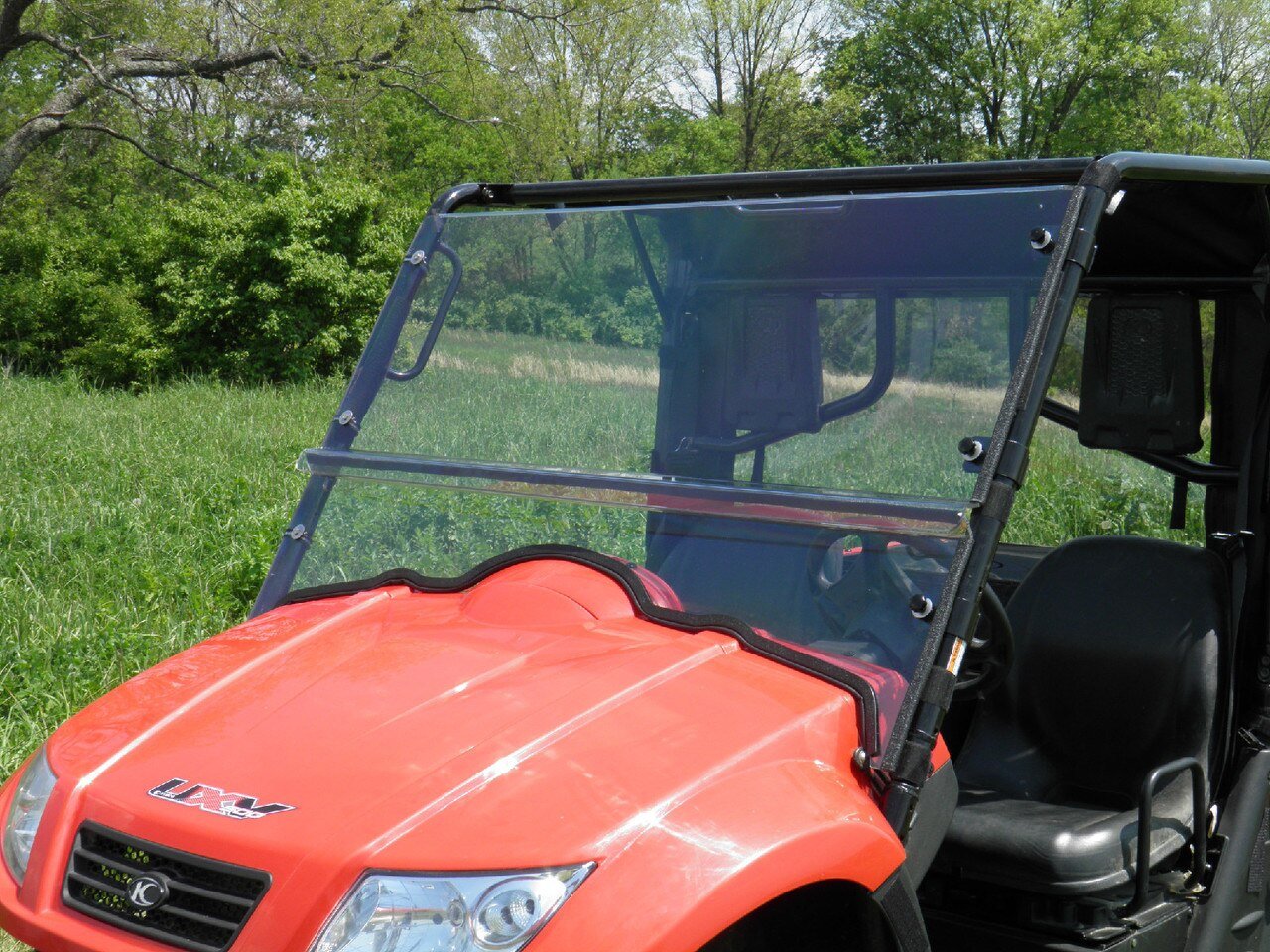

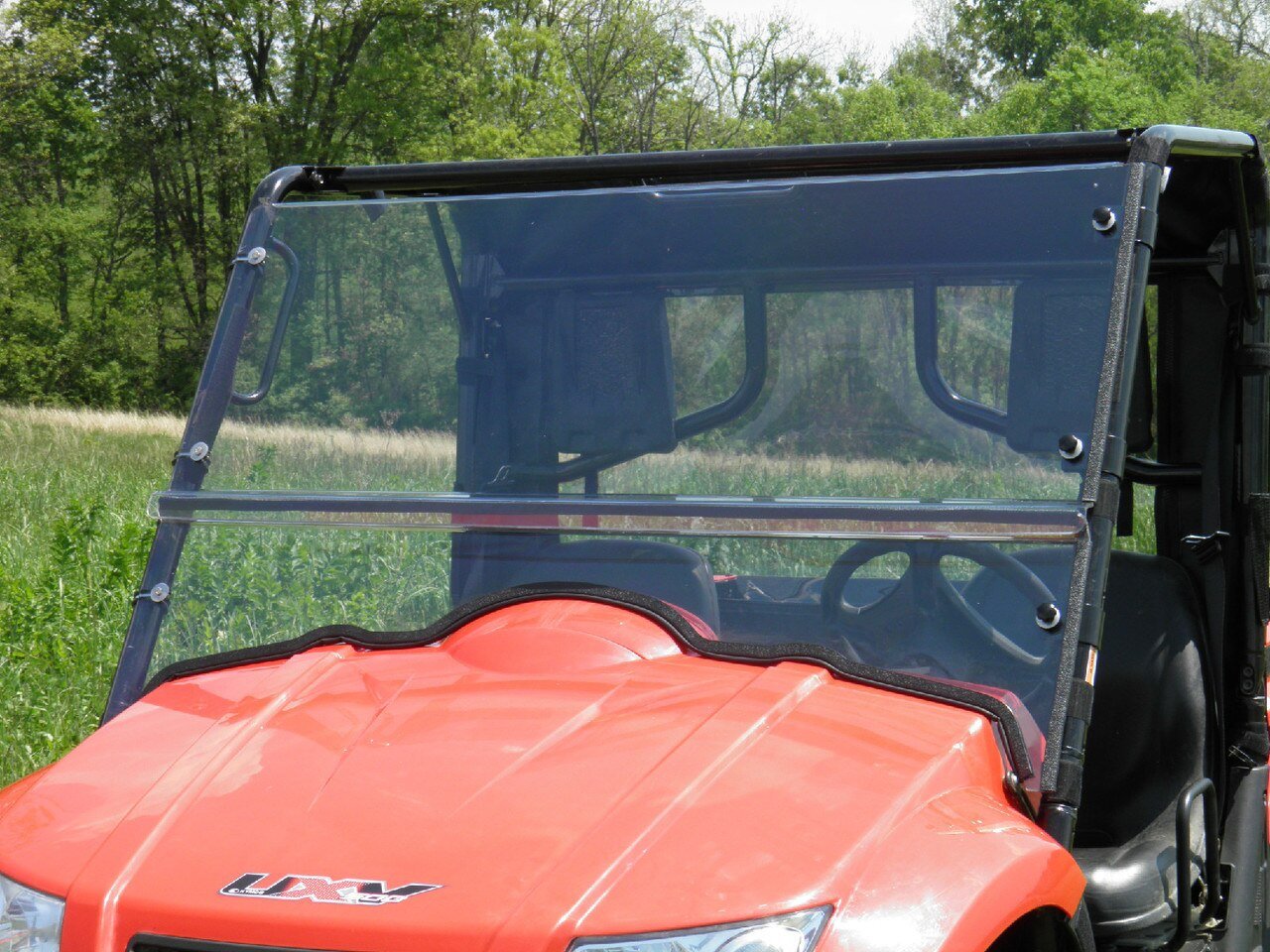

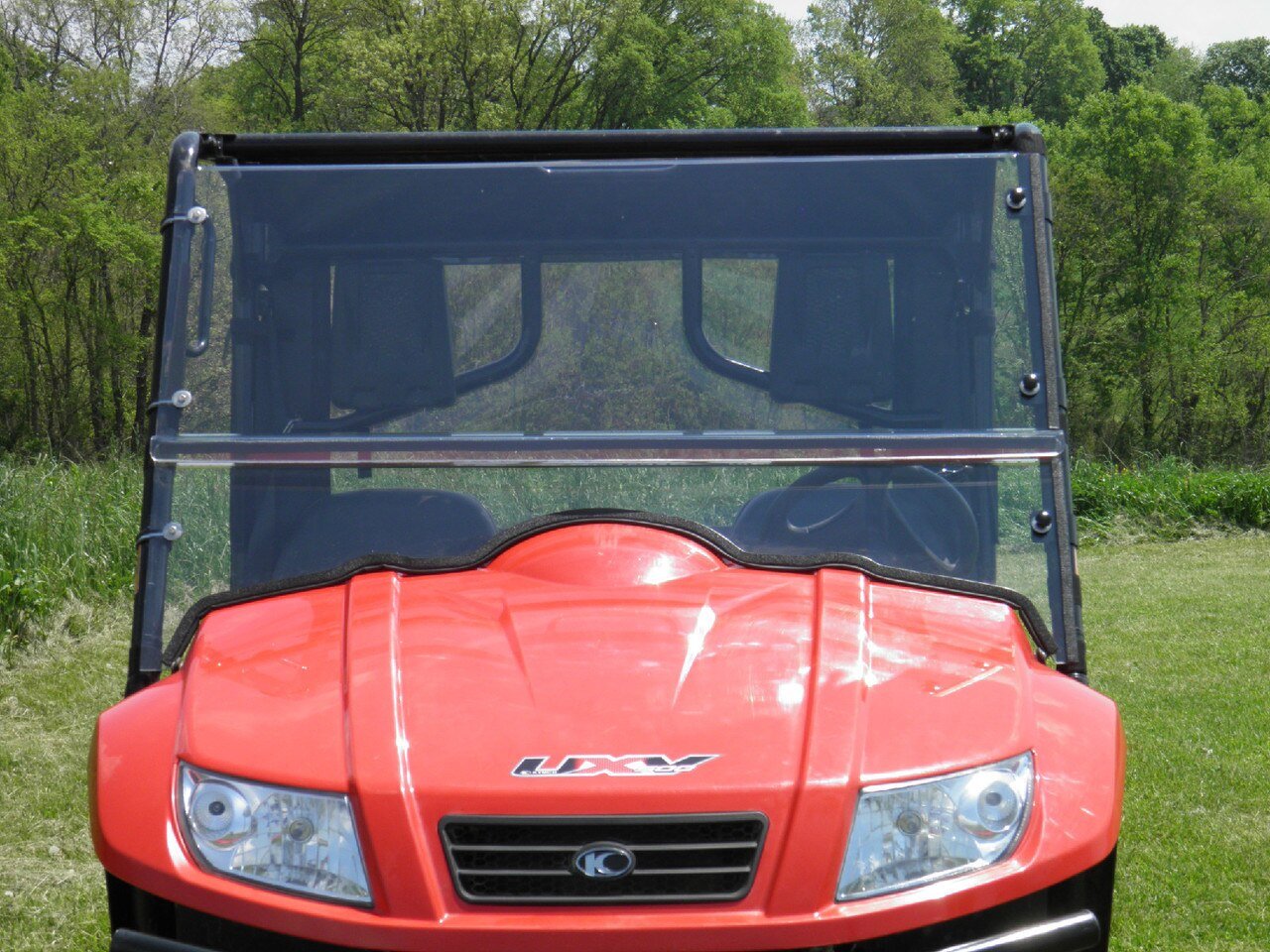

The unique design of the 2-piece vented windshield offers function in all seasons.  During colder months, the full windshield offers the needed front wind protection.  During warmer months, the 2-piece independent windshield sections allows the lower section to be removed for great air flow while the top remains on as a bug shield.  In spring and fall, simply open the vents for additional air flow when needed.  A quality windshield manufactured by 3 Star Industries with multiple features at a value price.

BASE MODEL:

• ¼" POLYCARBONATE-The upper and lower windshield sections are made of polycarbonate that possesses incredible impact strength.  ¼" polycarbonate will not bow at high speeds or when hauling as compared to 3/16" polycarbonate.
• 2 PIECE DESIGN-Each windshield section mounts independently of the other.  This allows the rider the option of riding with both sections on or just the top or bottom on when more air in the cab is desired.
• AUTOMOTIVE TRIM-The bottom and sides of the lower windshield section and the sides of the upper windshield section have a flexible PVC edge trim installed.  The trim on the bottom of the lower section includes a flexible bubble to better seal any gaps between the windshield and hood line.

• BENDS-All of our 2-piece windshields have bends for design purposes or to add strength to the windshield.  At the top of the lower section, the windshield contains a bend out of approximately 60 degrees.  At the bottom of the upper section, the windshield contains two bends; one out and one down.  This allows the bends in the upper section to mount over the bend in the bottom section.  Please see the listing photos showing these bends.  An additional bend is designed at the top of the upper section.  This bend strengthens the polycarbonate and provides stability at high speeds or while towing.  Your windshield may contain additional bends if needed to contour to the vehicle's cab frame.

• ADDITIONAL FEATURES-The top of the windshield stops just below the front cross bar.  The windshield should not interfere with your top.  The windshield can be used with a soft top or hard top.

OPTIONS:

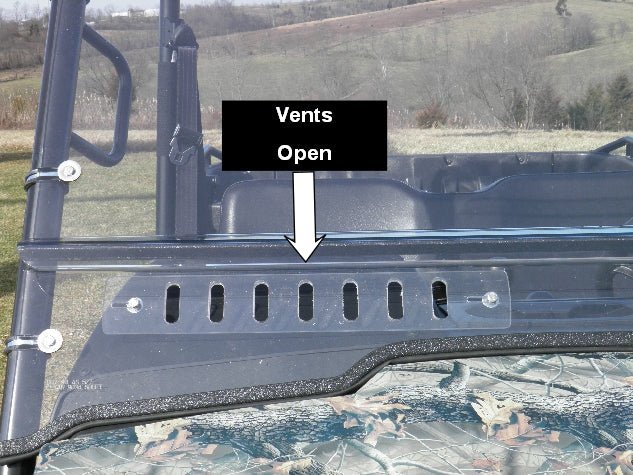

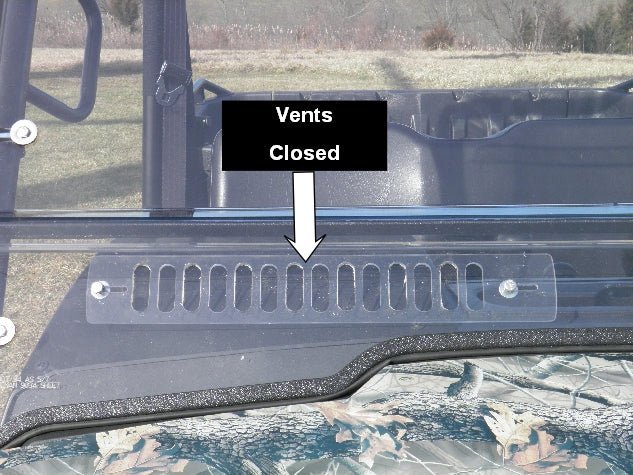

• DUAL VENTS-The windshield is manufactured with dual vents on the bottom windshield section.  A line of vent openings are cut in front of the driver and in front of the passenger.  The vents open and close by sliding the vent covers from side to side.

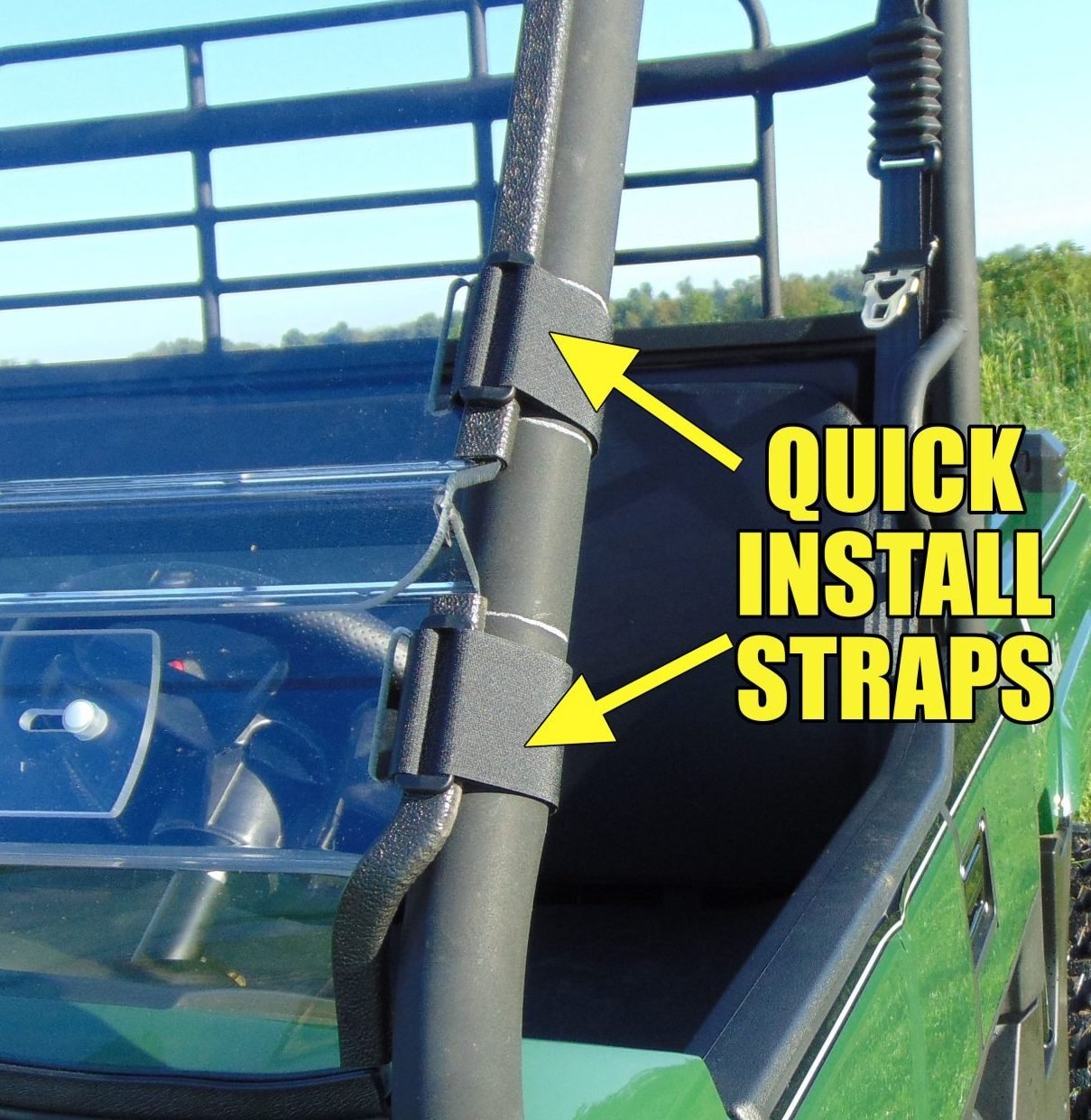

• QUICK INSTALL STRAPS-The Quick Install Straps provide the quickest and easiest installation of a windshield on the market.  NO TOOLS REQUIRED!  Made of military-grade hook and loop, simply thread the straps through the windshield slots, mount, and attach.  IT'S THAT EASY.

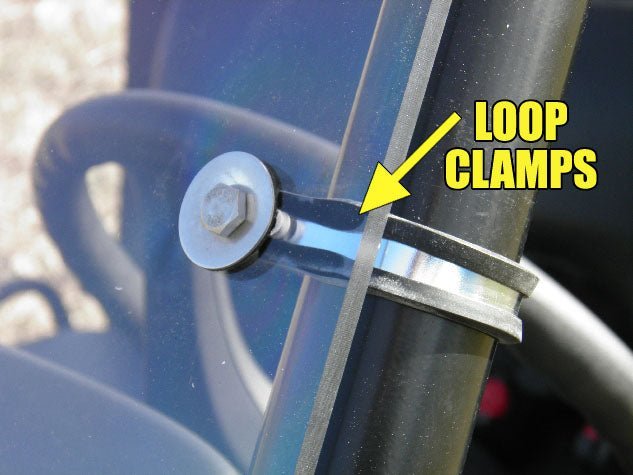

• LOOP CLAMPS-Loop clamps are a strong but economical mounting option.  Loop clamps are a vibration-damping and made of zinc-plated steel with a vinyl coating for cushioning.

Upon receipt of your windshield and prior to removing the protective film from each side, please.

• Inspect for any damages, including scratches protruding through the protective film
• Ensure product satisfaction
• Confirm correct fitment

Click here for installation instructions - straps

Click here for installation instructions - loops

Once protective film is removed, the windshield is no longer returnable or refundable.

PLEASE NOTE-All features may not be presented in the accompanying pictures.  Description takes precedence of pictures.

Prop 65 Warning-Product may contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.  For more information, go to www.P65Warnings.ca.gov
